CONCEPT STORE - Simple Wireless Home Alarm/Camera Solution

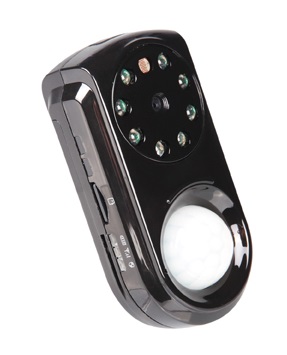

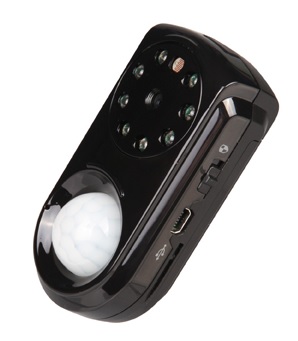

GM-01 Simple Wireless Home Alarm/Camera Solution

GM01 is a widely used security device based on GSM/GPRS network, switching seamlessly between different countries. It is of easy installation, and can be remotely controlled by mobile phone anytime anywhere via SMS or GPRS command. Voice & Video are recorded automatically by its sensitive infrared human body sensor and night-vision supported CMOS camera. Besides, alarm can be triggered by manual button, SMS or preset timing period with message sent to multiple groups of specific numbers.

GM01 is the ideal surveillance device for home, office, factories, and shops etc., especially garage, warehouse and other occasional network places.

Main Function
PIR Sensor

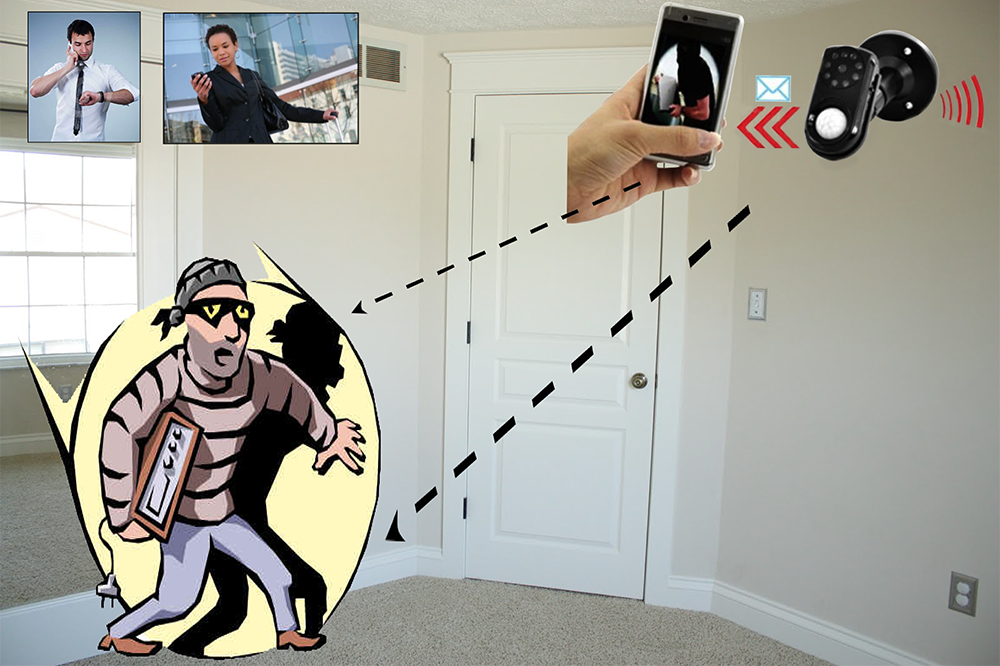

Once the unwelcomed person comes to the defense area, it will take picture and save, and send to your mobile phone if you request. It supports 2 modes:

A. MMS to mobile phone

• Passive: After somebody is detected, the alarm camera takes picture and send to mobile phone
• Active:  Use your mobile phone to send a command message to the alarm camera, it will constantly take picture and send to your mobile phone.

B. Save to the TF card

• Passive: After somebody is detected, the alarm camera takes picture and save onto TF card
• Active:  Use your mobile phone to send a command message to the alarm camera, the alarm camera will constantly take picture and save to TF card

Video Recording
Alarm camera will start video recording for 1-5 minutes when the infrared sensor is triggered, it will save the file by default to TF card. After that, it will be back to stand by and wait for next command to start recording;

Picture Taking
Use you mobile phone to send a command message to the alarm camera to start taking picture, it will save picture to TF card.

Voice Monitoring
Use your mobile phone to call on the alarm camera; you can listen to the voice around it.

The alarm system can widely use for villas, shops, cars, hospitals, schools, financial offices, factory floors, oil and gas pipelines monitor, pumping stations .etc.

Specification

• Weight: 61g
• Dimensions: 82.5 (L) x 44.3 (W) x 28.7 (H) mm
• Communication system: GSM
• Camera: 0.3Mega Pixel CMOS camera
• LED indicator: Armed - Yellow, GSM - Green, Power - Red
• Working voltage / current: 5vDC / 80mA
• Frequency: L1,1575.42MHz C / A code
• GSM: 900 / 1800 / 850 / 1900 MHz
• GPRS: Class12
• Internal storage: 128M
• External storage: Support T-Flash external storage card, maximum 4G
• Built-in battery: 3.7vDC / 800mAh
• Built-in antenna: Built-in Dual-band antenna
• Standby time: 8 hours

Feature List

• GSM wireless network; easy installation
• Voice & Video recording automatically
• Multiple groups of specific numbers for alarm
• Built-in infrared human body sensor to active burglar alarm
• Remotely control via SMS or GPRS command
• User-friendly automatic monitor with preset multi-period timing
• Built-in lithium ion battery in case external power off
• Support T-CARD function; convenient storage expansion
• Remote voice monitor function with monitoring range in 5M
• Built-in CMOS camera and infrared light for infrared night shot
• Remotely automatic photograph, send to mobile phone or e-mail and upload to platform via MMS
• Set up / off anti-theft alarm in three ways (manual button, SMS, preset timing period)

Warranty

• All products have been strictly Quality Checked in house before pack and ship out.
• One year warranty against manufacturing defects.
