CONCEPT STORE - GPS Personal Vehicle Tracker

GPS Personal Vehicle Tracker / Model: TR02

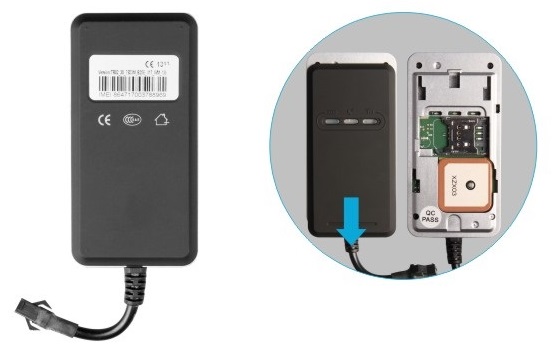

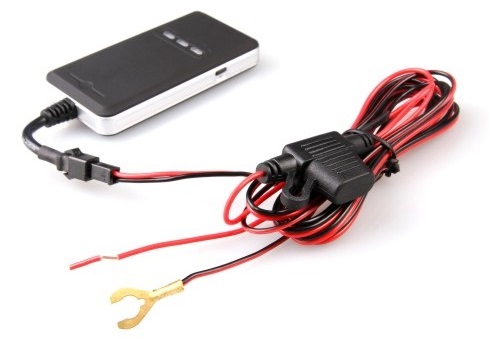

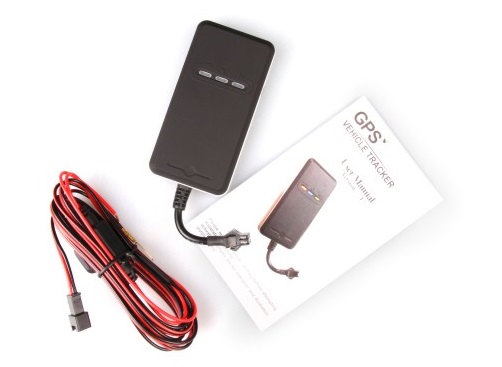

TR02 GPS Tracker is a compact and powerful GPS device. It used in monitoring private car movement against theft criminal act. Through the Intelligent Positioning Satellite, the GPS system send GPS data to the proprietor, tracker can access through mobile phones and computer...Anytime, anywhere to get the latest vehicle position, speed and direction of the vehicle.

Specification

Weight	53g
Dimensions	86.7 ( L) X 44.0 (W) X 13.7 (H) mm mm
Working voltage/current	9-36VDC / 25mA
Operating temperature	-25℃- 60℃
Operating humidity	5% to 95% RH
LED indicator	Three LED indicator: GPS-blue, GSM-green, Power-red
GSM	850/ 900/ 1800/ 1900 MHz
GPRS	Class12, TCP/ IP build in GSM Module
GPS	MT3326
Frequency	L1,1575.42MHz C/A code
GPS antenna	Built-in GPS high gain ceramics patch antenna.
GPS Channels	20
Tracking sensitivity	-159dBm
Acquisition sensitivity	-144dBm
Locating time cost	Hot start: < 2 sec@ open area> Warm start: < 15 sec Cold start: < 38 sec @ open area>
Certifications	CE, ROHS

Warranty

• All products have been strictly Quality Checked in house before pack and ship out.
• One year warranty against manufacturing defects.

Feature List

• GPS + GSM + GPRS wireless network
• Built-in high sensitive GPS chipset
• Built-in GSM & GPS antenna
• Real-time tracking
• Start working automatically after electrifying
• Built-in monitor circuits to avoid breakdown
• Built-in ON / OFF power, wide voltage input range
• Built-in acceleration sensor for saving power intelligently and Resisting static drifting
• Installing method: covert / open
• Three LED indicators: GPS - Blue; GSM - Green; Power - Red
• Check location via platform service

GPS Tracking System

Refer: http://www.iconcox.com/products/GPS_tracking_system.html
Ideal for Vehicle Tracking

Concox’s Tracking Platform is a stable and simple system for your fleet or company. Our skilled engineers always dedicate to provide you with better service. With this platform, asset locations and vehicle movements- including position, speed, altitude and heading – are tracked in real-time worldwide via our GPS devices. The platform also supports playback, geofence and SOS alarm. It’s never been so easy to track your vehicle or assets, wherever they are!

Concox Vehicle Guard

1. Multi-map support
2. Remote control
3. Time-zone based with multi-language options
4. Real-time tracking
5. Integrate with OBDII
6. Mileage and statistics
7. KML export to Google earth
8. Group Management
9. Online configuration

Would you like to try the amazing experience on our platform? Please click the website below and login with your trial account:

Account   : little
Password : 123456
