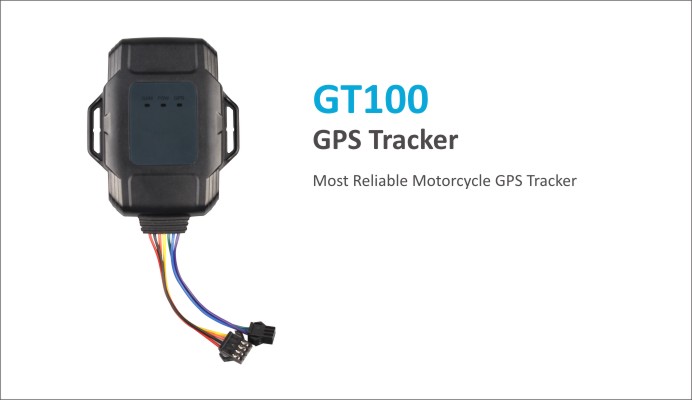

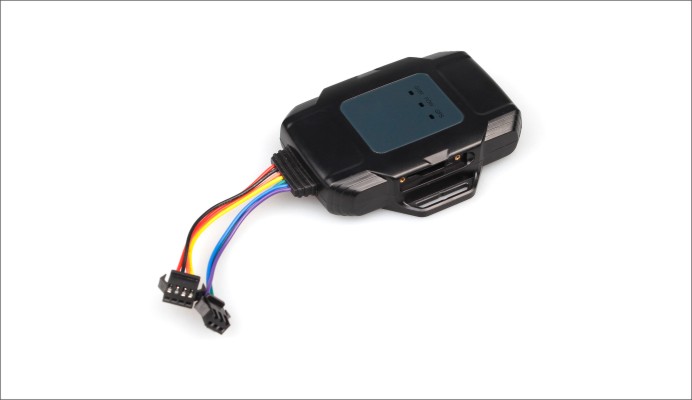

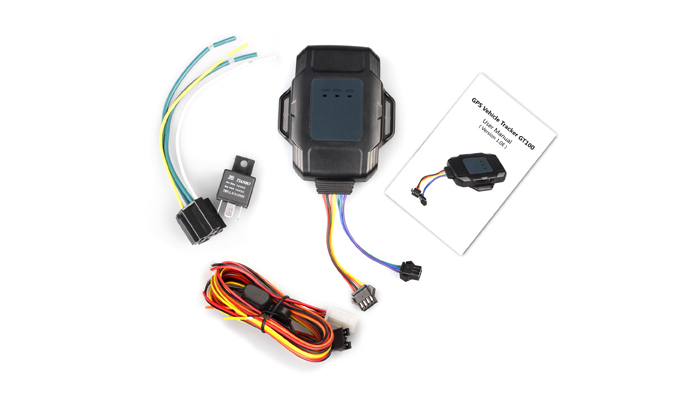

CONCEPT STORE - Motorcycle GPS Tracker

Specification
Weight 95.3g
Dimensions 86.6(L）× 59.0（W）× 29.2（H）mm
Standby Time100 hours
Operating temperature-20℃- 80℃
Backup Battery800mAh/3.7V
GSM Frequency850 / 900 / 1800 / 1900 MHz
GPRSClass12
GPS Channels20
Tracking sensitivity-165dBm
Acquisition sensitivity -148dBm
GSM / GPS AntennaBuilt-in
LED IndicatorThree LED indicators: GPS-blue; GSM-green; Power- Red
Locating time costHot start: < 2 sec(open sky)
Cold start: < 38 sec(open sky)


Feature List
  1. Specially made for motorcycle
  2. Water and dust proof IP56
  3. GSM 850/900/1800/1900 MHz Quad-band
  4. GPS+GSM+GPRS wireless network
  5. Built-in high sensitive GPS chipset
  6. Built-in GSM&GPS antenna
  7. Real-time tracking
  8. Theft alert if the motorcycle is moved without ignition
  9. Geo-fence alarm
  10. Cut-off petrol/electricity
  11. Low battery protection
  12. ACC stature detection and alarm
  13. Built-in battery standby when the engine is off
  14. Three LED indicators: GPS- Blue; GSM- Green; Power- Red
  15. Check location via platform



Download User Manual
